QUICK CONNECT FITTING FOR FUEL TANKSNEW
- fittings for water tanks

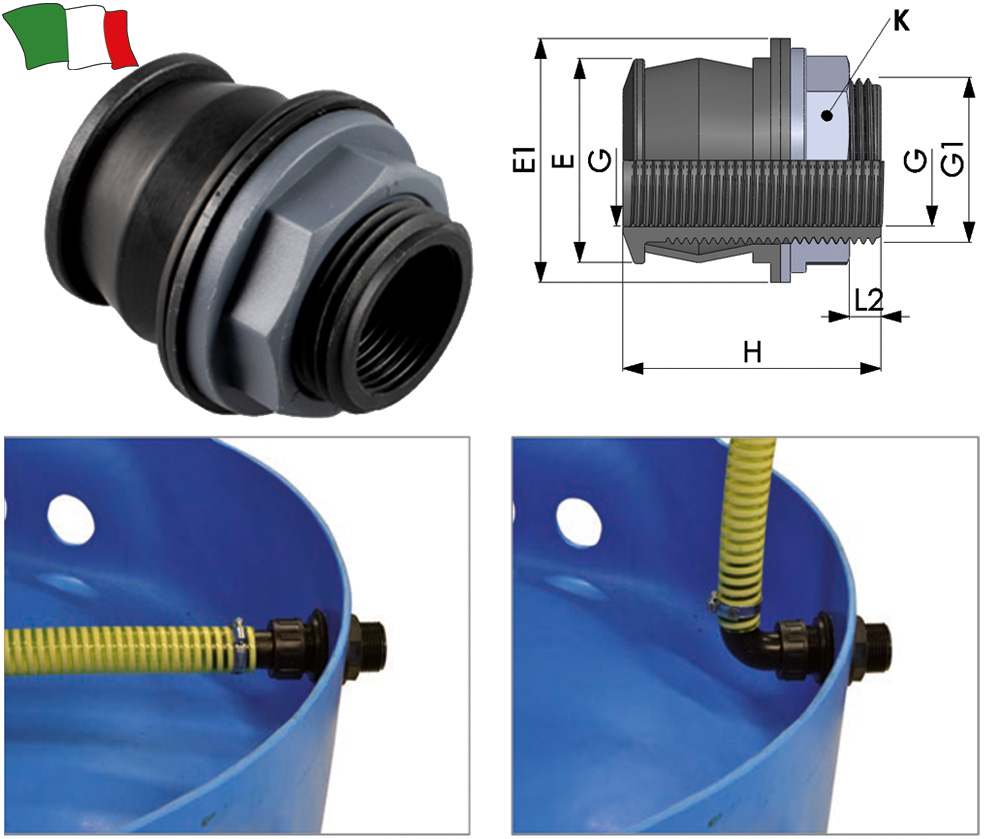

Quick connect fitting in polypropylene (PP) EXTERNAL INSTALLATION for PE tanks and metal tanks with a minimum wall thickness of 2 mm.
NBR seal and gray collar.
SUITABLE FOR USE WITH FUELS.
| | External thread G1 inches | Interna thread G inches | E mm | E1 mm | H mm | L2 mm | K mm |
|---|---|---|---|---|---|---|---|
| 1/2" | 3/8" | 29 | 37 | 49 | 5 | 28 | |
| 3/4" | 1/2" | 35 | 43 | 52 | 4 | 32 | |
| 1" | 3/4" | 43 | 53 | 56 | 7 | 41 | |
| 1" 1/4 | 1" | 52 | 62 | 65 | 6 | 50 | |
| 1" 1/2 | 1" 1/4 | 59 | 68 | 75 | 16 | 57 | |
| 2" | 1" 1/2 | 70 | 80 | 91 | 31 | 70 |
