COMPRESSION HOSE FITTING BDFastNEW
- fittings for water tanks

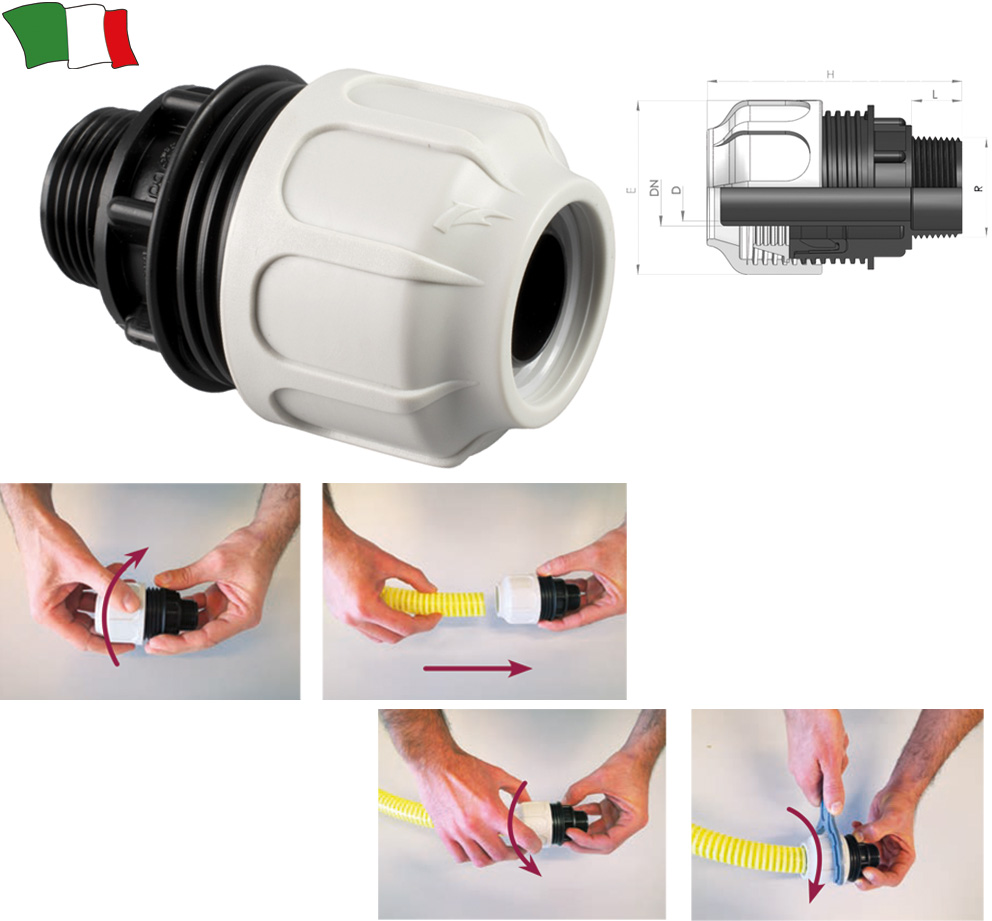

Straight male BDFast compression hose fitting in polypropylene (PP) for flexible tubes.
Connection for DN tube and the other end male threaded with R-type.
| | DN mm - inches | External thread R inches | D mm | L mm | H mm | E mm |
|---|---|---|---|---|---|---|
| 20 - 25/32 | 1/2" | 15,5 | 14,5 | 86 | 58,5 | |
| 20 - 25/32 | 3/4" | 15,5 | 16 | 87,5 | 58,5 | |
| 25 - 1 | 3/4" | 20,5 | 16 | 90,5 | 62 | |
| 20 - 25/32 | 1" | 15,5 | 18 | 89 | 58,5 | |
| 25 - 1 | 1" | 20,5 | 18 | 92 | 62 | |
| 30 - 1 3/16 | 1" | 25,5 | 18 | 96,5 | 71 | |
| 30 - 1 3/16 | 1" 1/4 | 25,5 | 20 | 99 | 71 |
