COMPRESSION HOSE FITTING BDFastNEW
- fittings for water tanks

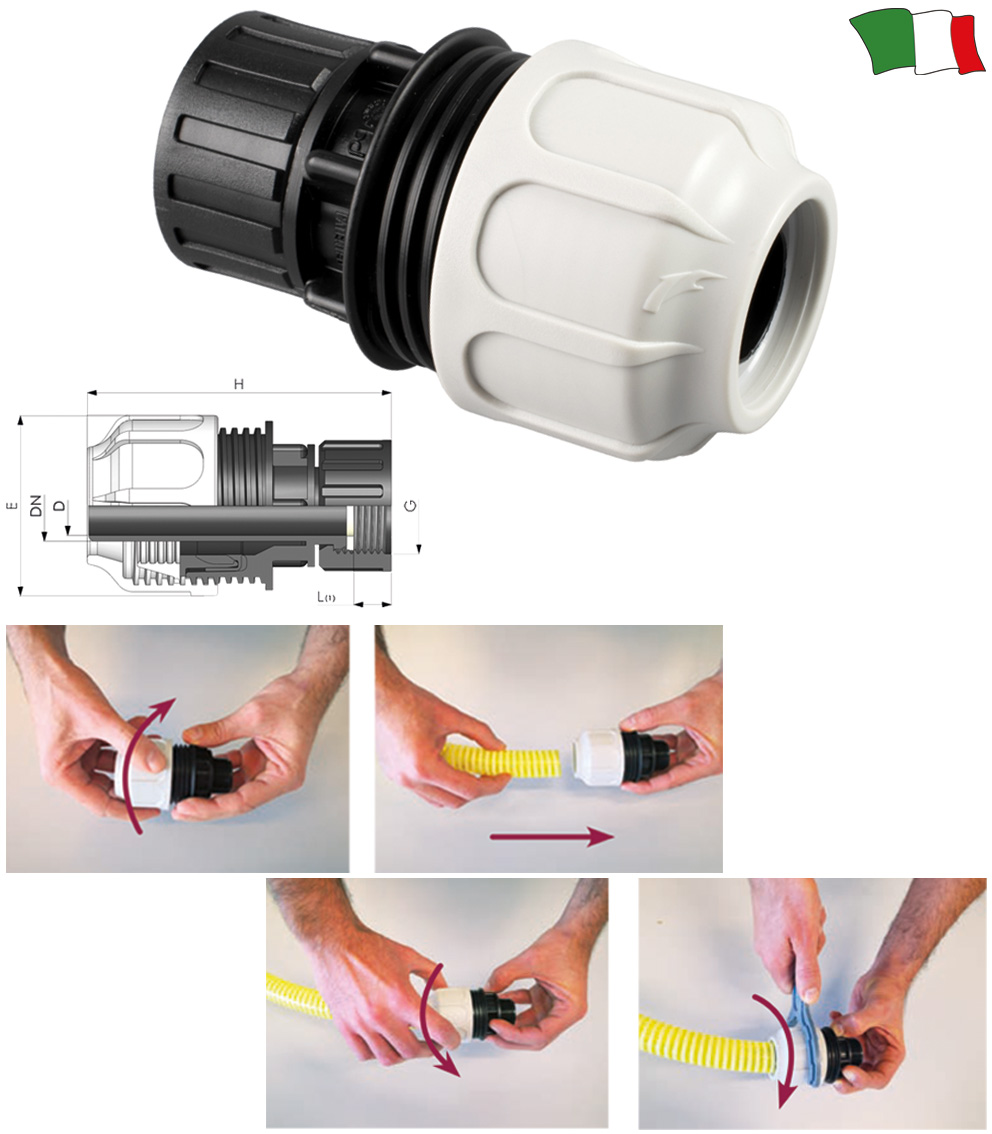

Straight female BDFast compression hose fitting in polypropylene (PP) for flexible hoses.
Connection for DN tube and the other end female threaded with G-type swivel collar and flat EPDM gasket.
| | DN mm - inches | Interna thread G inches | D mm | L(1) mm | H mm | E mm |
|---|---|---|---|---|---|---|
| 20 - 25/32 | 3/4" | 15,5 | 10,5 | 90 | 58,5 | |
| 25 - 1 | 3/4" | 20,5 | 10,5 | 96 | 62 | |
| 20 - 25/32 | 1" | 15,5 | 12 | 94 | 58,5 | |
| 25 - 1 | 1" | 20,5 | 12 | 100 | 62 | |
| 30 - 1 3/16 | 1" 1/4 | 25,5 | 14 | 108 | 71 |
