"PRINCE DP2E" 500 - 800 W VERTICAL WINDLASSES
- windlass

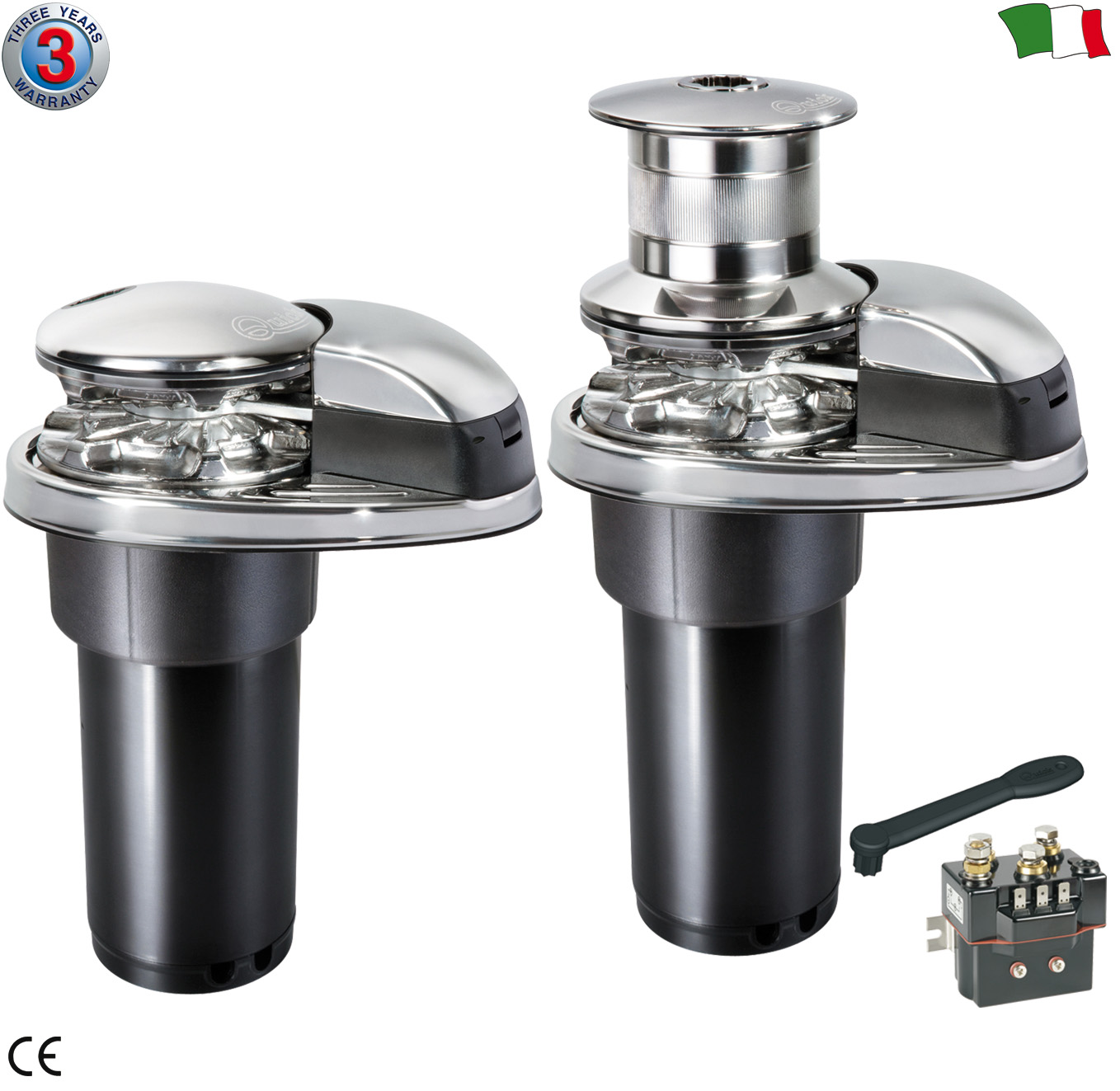

Vertical "PRINCE DP2E" with S.STEEL AISI 316 base.
Features:
• Rope and chain on a single gypsy
• Manual chain free-fall system
• Supplied with pression lever
• Integrated magnete and sensor for chain counter
• Watertight IP66
• Anodised aluminium adaptor
Complete with: reverse contractor unit and nylon handle, excluding control board (optional item 036609 - 036611).
| Model without drum | Model with drum | Watt | Volts | Consumption Amp | Ø chain mm | Ø rope mm | Working load Kg | Working load Max Kg | Deck thickness mm | Weight Kg | Boat m | Case contactor/reversing contactor | Switch hydraulic magnetic circuit breaker |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | 500 | 12 | 60 | 6 | 12 | 65 | 200 | 20÷40 | 9,5 | 6>9 | 036600 | 036625 | |
| 800 | 12 | 84 | 6 | 12 | 95 | 290 | 20÷40 | 10,7 | 8>10 | 036600 | 036628 | ||
| - | 800 | 12 | 84 | 8 | 12 | 95 | 290 | 20÷40 | 9,5 | 8>10 | 036600 | 036628 |
