"DYLAN DH4" 1500-2000 W VERTICAL WINDLASSES
- windlass

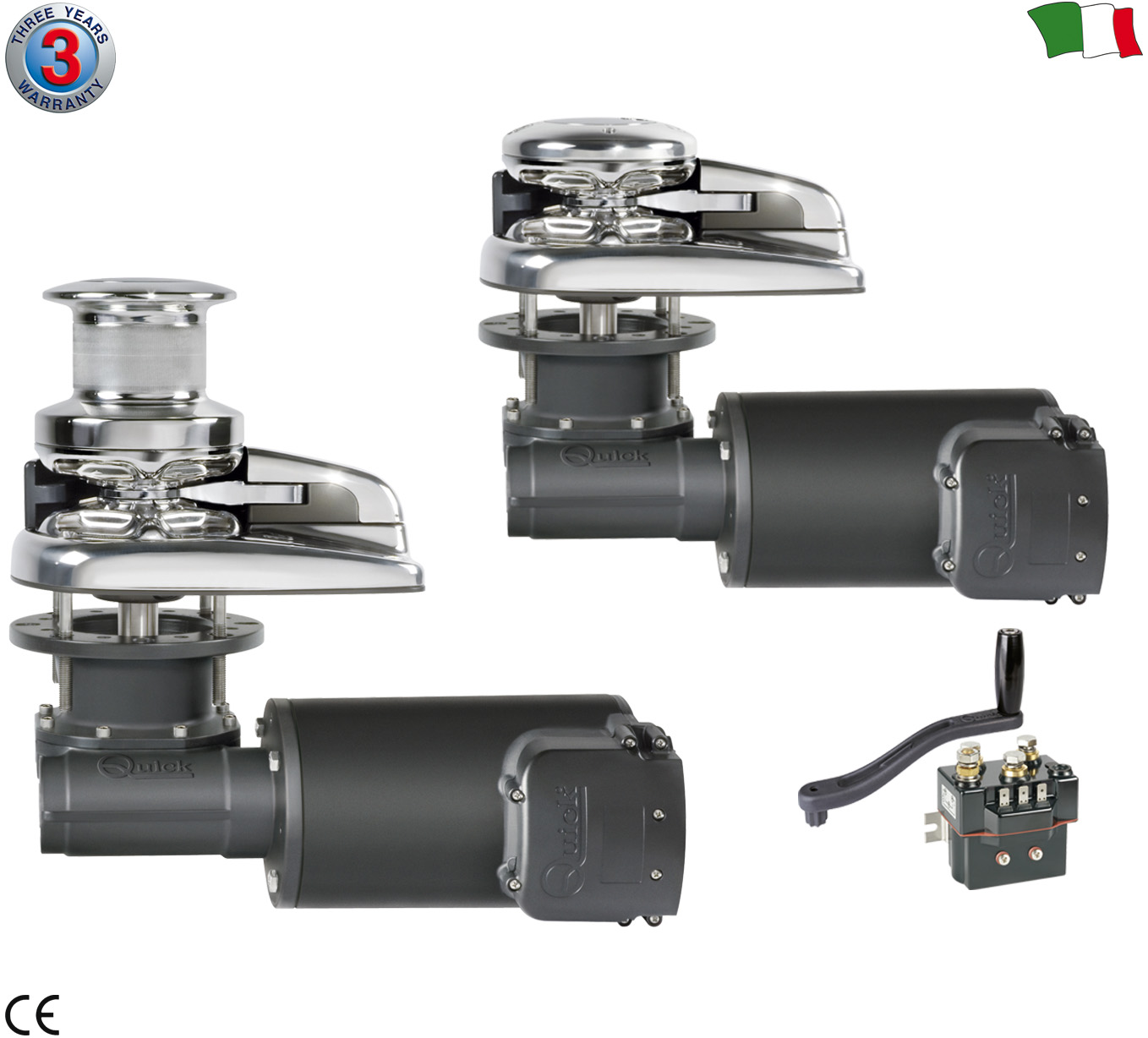

Vertical "DYLAN DH4" windlass with anodized aluminium hard oxide base.
Features:
• Rope and chain on a single gypsy
• Manual chain free-fall system
• Emergency manual lift system
• Inspection hatch
• Integrated magnete and sensor for chain counter
• Supplied with pression lever
• Watertight IP67 (1500 W) e IP66 (2000 W)
• Anodised aluminium adaptor
Complete with: contractor unit and aluminium handle, excluding control board (optional our items 036609 - 036611).

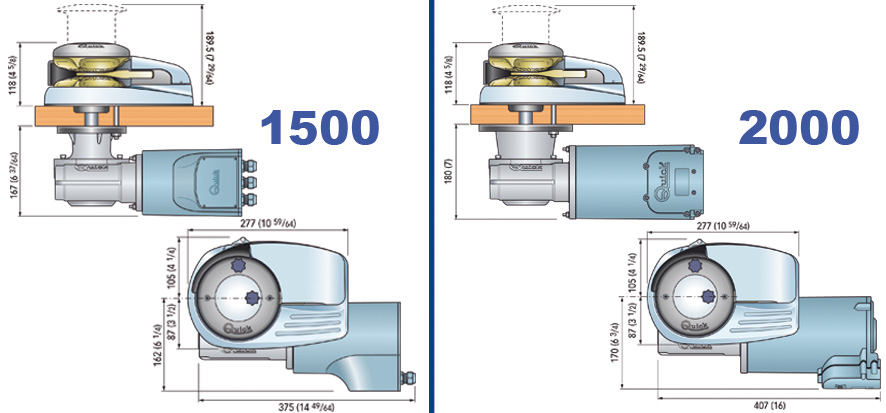

| Model without drum | Model with drum | Watt | Volts | Consumption Amp | Ø chain mm | Ø rope mm | Working load Kg | Working load Max Kg | Deck thickness mm | Weight Kg | Boat m | Case contactor/reversing contactor | Switch hydraulic magnetic circuit breaker |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1500 | 12 | 150 | 10 | 19 | 135 | 400 | 25÷50 | 25 | 12>15 | 036601 | 036630 | ||
| 1500 | 12 | 150 | 12 | 19 | 135 | 400 | 25÷50 | 25 | 12>15 | 036601 | 036630 | ||
| 2000 | 24 | 105 | 10 | 19 | 250 | 750 | 30÷70 | 32,5 | 15>20 | 036604 | 036628 | ||
| 2000 | 24 | 105 | 12 | 19 | 250 | 750 | 30÷70 | 32,5 | 15>20 | 036604 | 036628 |
