PLASTIC BATTERY DISCONNECTOR

Technical features
Max continuous capacity	140 Amp
Max short endurance capacity	2000 Amp for 3 seconds
Max nominal tension	12 - 24 Volt
Cylinder diameter	25 mm
Contact bolts diameter	9,8 mm
Flange diameter	64 mm
Centre-to-centre distance	39 mm

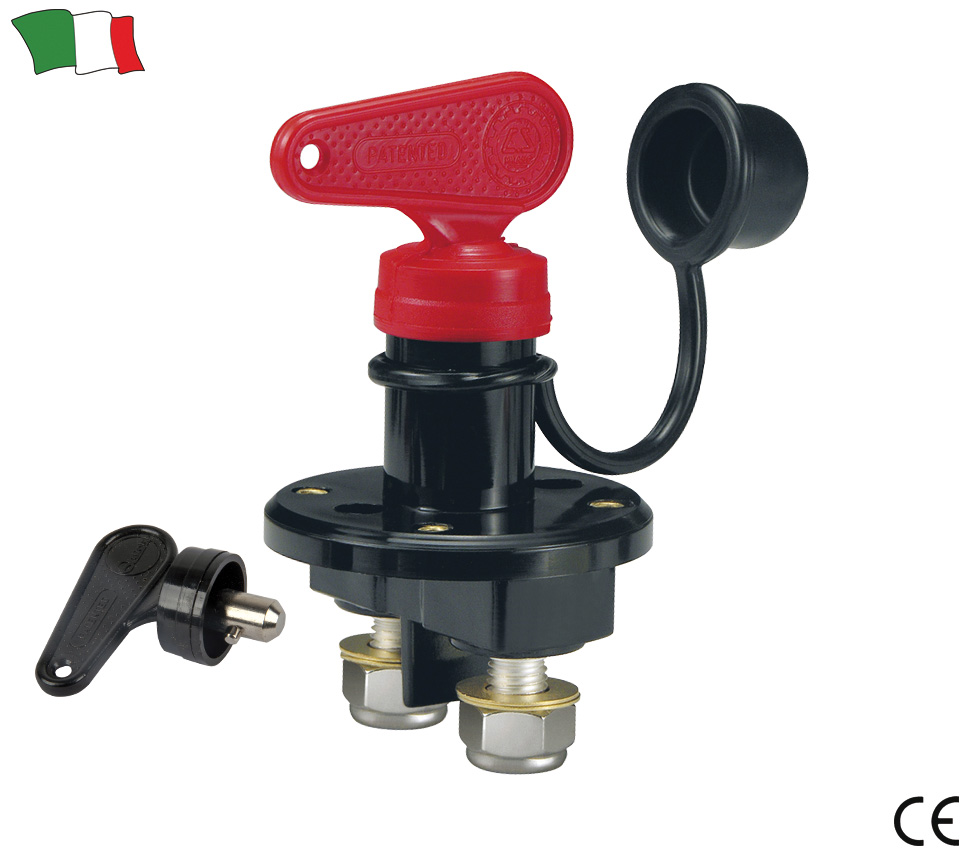

630190	Battery disconnector with removable key CE UNI EN 28846 approved. Made of plastic material with silver-plated copper contacts. Fixed on flange.
630194	Battery disconnector with removable key. Made of plastic material with silver-plated contacts. Fixed on flange.
