"BEP MARINE" EASYFIT BATTERY DISCONNECTOR

  • battery disconnector
630173

Technical features

Max continuous capacity

275 Amp

Intermittent capacity

455 Amp

Max short endurance capacity

1250 Amp for 10 sec.

Voltage

max 48 Vdc

Contact bolts diameter

9,7 mm

Terminals

2

Operation

ON / OFF

630173

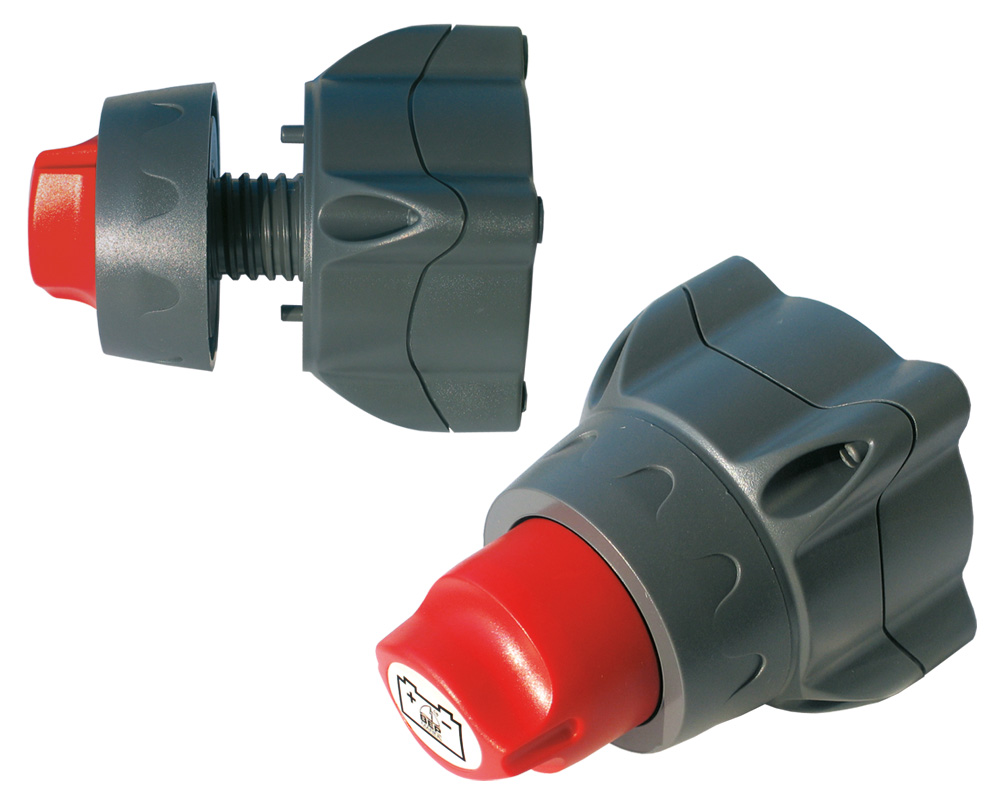

This new Easyfit battery switch solves the problem for those installations in panels of different thickness. A removable threaded ring allows to install the switch in panels up to 19 mm thickness. It can replace the most of the switches now installed in Europe, offering a modern and ergonomic design. The key is locked on ON/OFF position but it can be removed by rotating at 45° counterclockwise. Mounting recessed or surface.

Pins and nuts are made of tin-plated copper.
