BRASS BATTERY DISCONNECTOR

Technical features
Max continuous capacity	140 Amp
Max short endurance capacity	2000 Amp for 3 seconds
Max nominal tension	12 - 24 Volt
Cylinder diameter	27 mm
Contact bolts diameter	10 mm
Flange diameter	68,5 mm
Centre-to-centre distance	39 mm
Length	115 mm
Width	70 mm

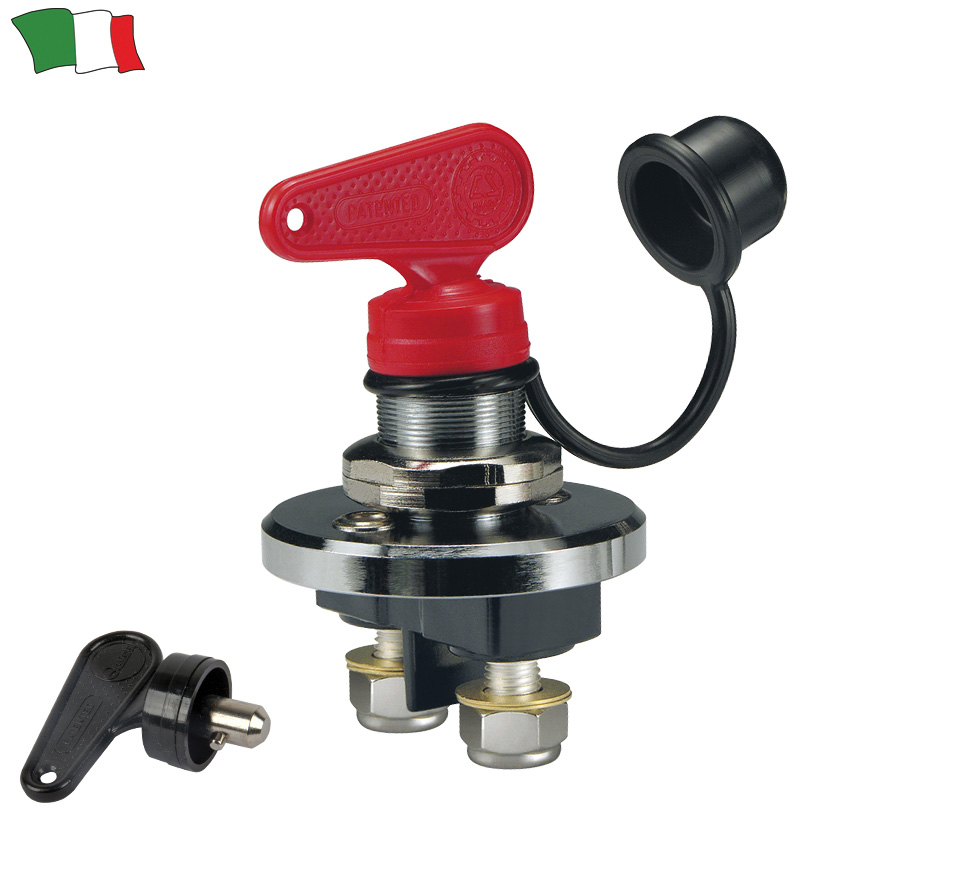

630184	Battery disconnector with removable key. Built up with plastic and chromed brass material. Fixed on flange or on cylinder with nut and coupling nut.
