HYDRAULIC STEERING SYSTEM GF 300A FOR OUTBOARDS UP TO 300 HP OR TWIN ENGINES 300 HP WITH COUNTER ROTATING PROPELLERS

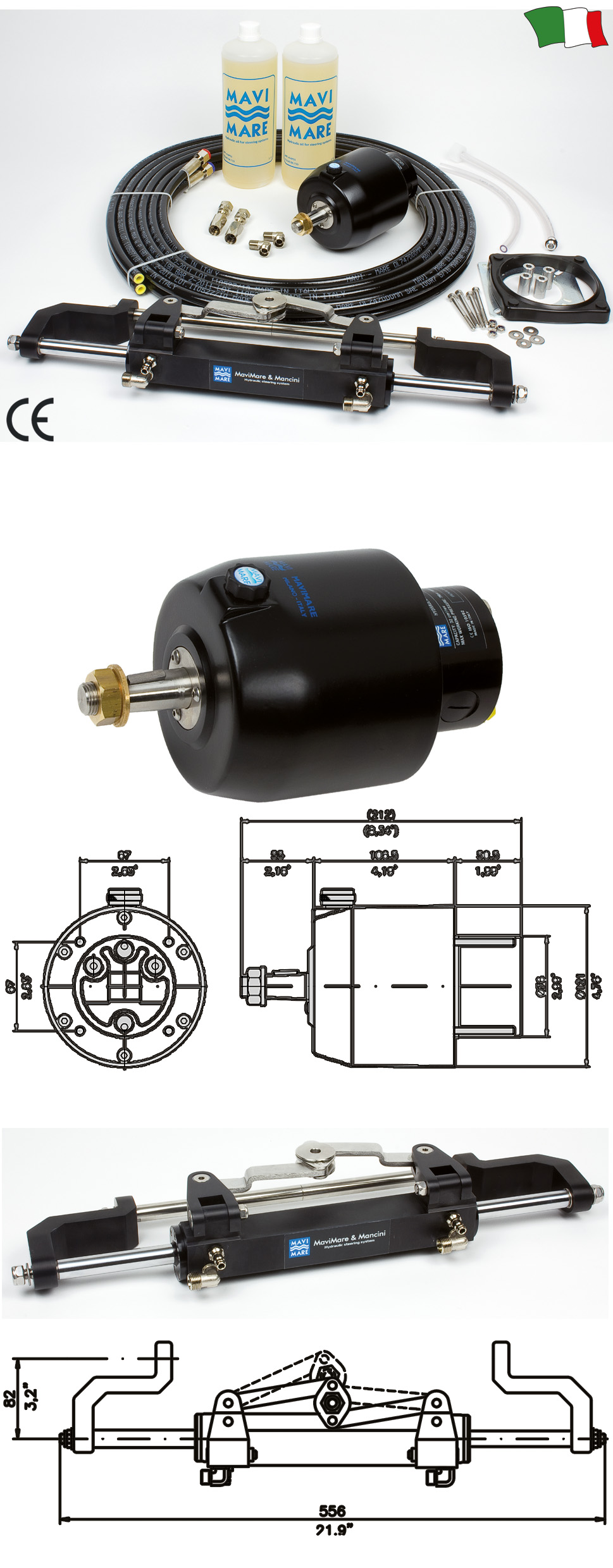

128129	Complete Kit GF 300A composed of: • Volumetric pump code 128101 • Hydraulic cylinder code 128116 • Hydraulic oil 2 liters code 439282 • Fitting kit Lock-to-lock steering wheel turns: 5 Hydraulic flexible hoses and steering wheel not included. For use with KIT OB fitted flexible hoses: see code 128040 - 128052

128101	GM0-MRA 01 front mount hydraulic pump. All the parts of the pump are made of high quality materials which features match the functions of each component: • The shaft is made of STAINLESS STEEL AISI 316 • The rotor is made of STAINLESS STEEL • The valve is made of brass • The pump is equipped with a non-return and pressure relief valve • Equipped with kit for semi-recessed mounting possibility. For use with KIT OB fitted flexible hoses: see code 128040 - 128052

Technical features
Max HP	300 HP or 2 x 300 HP with counter rotating propellers
Volume	130 cm³
Stroke	198 mm
Weight	6 Kg

128116	Balanced cylinder MC300A with frontal mounting. Chromed brass heads and housing and STAINLESS STEEL AISI 316 shaft. Use with flexible pre assembled hoses KIT OB: see codes 128040 - 128052. PLEASE NOTE: THE CYLINDER CANNOT BE MOUNTED ON POWERBOATS.
