VELAIR COMPACT i10 VSD SMARTNEW

  • air conditioner
  • air conditioner
  • air conditioning
642410

VARIABLE SPEED DRIVE (VSD) AIR CONDITIONING UNITS

The Compact i10 VDS Smart air conditioner offers the ultimate in technology, its compressor varies its speed so that it continuously adapts to the room and set temperature, so as to maintain constant comfort with minimal power consumption. Heat pump reverse cycle operation to heat the room in winter and air conditioning it in summer.

Features:
• Heat pump hot cycle
• Twin Rotary compressor with brushless DC motor and inverter for continuous control of speed and power output (Variable Speed Drive)
• Nearly zero compressor noise and vibration
• Fan with Constant Flow technology
• Wall mounted control panel
• Control via WIFI APP
• Operation with reduced power generators
• Maximum energy efficiency: reduced overall power consumption (-40%) with no current peaks at startup.

Comes with the following accessories:

AIR-CONDITIONING UNITS

Aluminium return grid NOVA-R 250 x 150

SEAWATER CIRCUIT

Centrifugal pump 25 l/min (5.5 GPM) w/thread 3/4"

No. 2 3/4" 16mm hose nozzles

3/4" through-hull kit

5 m reinforced transparent hose Ø int. 20 mm

AIR DIFFUSION

10 mt insulated flexible hose Ø int. mm 100

No. 2 aluminium grids 250x100

Diverter Y mm 100IN - 100/100 OUT

no. 2 plenum boxes mm 250x100 w/fittings mm.100

We can supply further optional accessories on demand.

Technical features

Cooling capacity

10000 BTU/h

Voltage

230 V – 50/60 Hz

Current consumption (in cold)

2,9 Amp

Consumption at full power

0,64 Kw

Protection class

10 Amp

Max airflow

400 m3/h

Flange diameter

1 x 100 mm – 1 x Ø 3,9 mm

Dimensions W x H x D

571 x 320 x 323 mm

Weight

25 Kg

642410

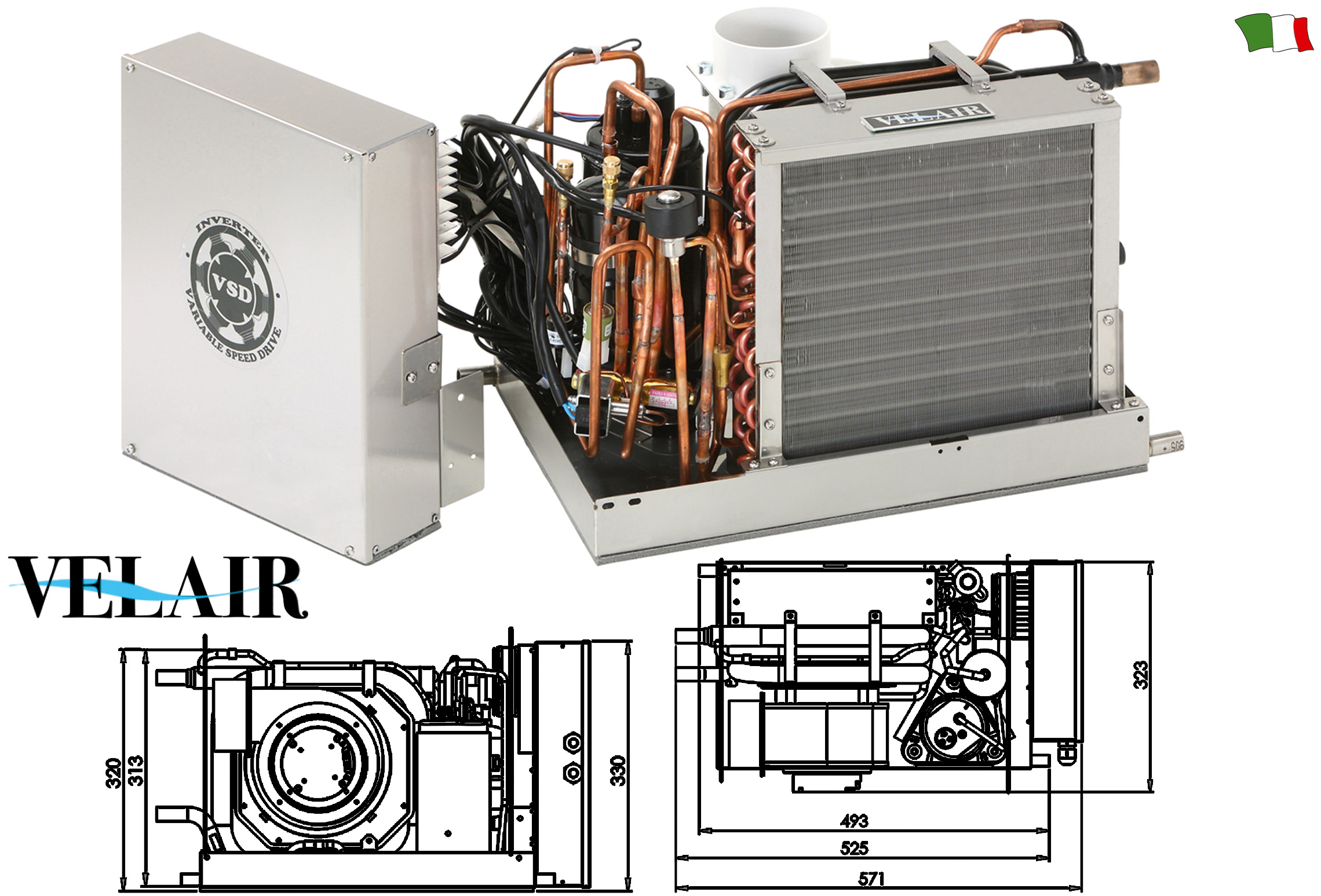

VELAIR Compact i10 VSD SMART air conditioner complete with accessories.
