Gibellato Forniture Nautiche

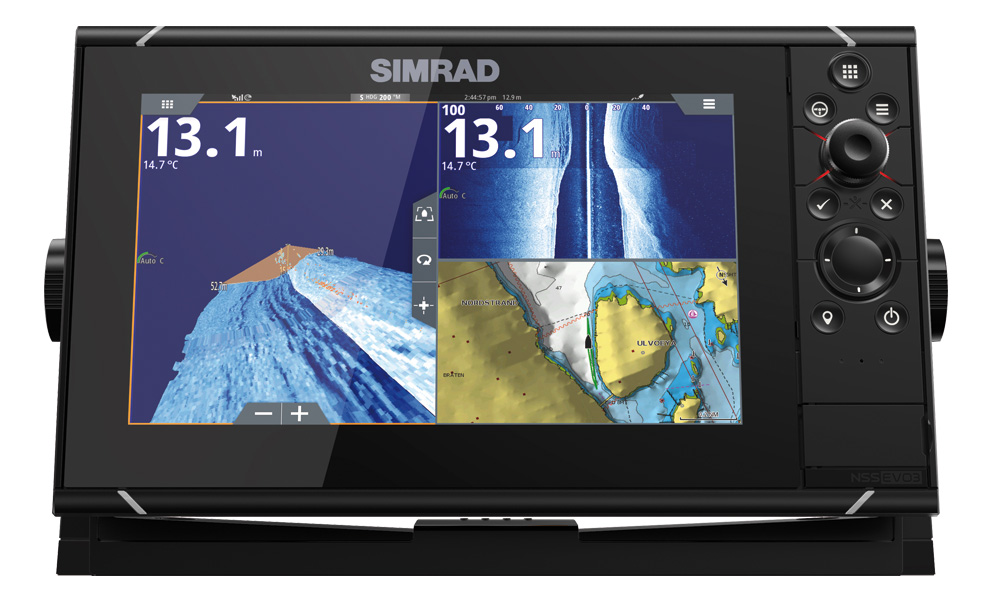

SIMRAD NSS EVO3S TOUCH COMBO

GN620030

NSS EVO3S touchscreen Fishfinder/Chartplotter equipped with rotating knob gives the possibility to switch between multi-touch mode and a small keypad (HD Widescreen display, SolarMax™ colour, with LED backlighting), high sensitivity internal antenna, NMEA 2000 interface and integrated Wi-Fi GoFree™ module enables to download, upgrade maps, software and apps directly, allows wireless viewing and control of your onboard displays with a smartphone or tablet (IOS – Android). Compatible with Med/High CHIRP transducers with DowScan Imaging 83/200-455/800 kHz, TotalScan and ForwardScan™. Complete with reclinable and swivel quick release mounting bracket, power cable, protective cover, italian and multilingual software.

Supports Simrad Broadband 3G/4G radars - open array Halo™ Pulse Compression - marine audio SonicHub server - autopilot and ForwardScan™.
VHF and AIS integration.

Depth up to:
90 m approx* (DownScan 455/800 kHz).
300 m approx* (with transducer 83/200 kHz).
450 m approx* (with transducer 50/200 kHz).
750 m approx* (with traditional thru hull transducer 1 kW).

* depth capacity depends on sea bottom and other water conditions.

Optional Navionics+ – Platinum+ and C-MAP REVEAL and DISCOVER SD cartography.

Code

Description

GN620032

NNS9 evo3S Fishfinder/Chartplotter (9" display 600x1280 pixel) without transducer

Spare parts

GN623037

Power cable for NSS7 - NSS9 - NSS12 evo3

GN623045

Mounting bracket for NSS9 evo3

GN623048

Protective cover for NSS9 evo3

Availability:
  • Available
  • Not available
  • Stock not managed
