LOW PROFILE BILGE PUMPNEW
- bilge pumps
- seaflo
- submersible electric pumps
- Electric centrifugal submersible pumps

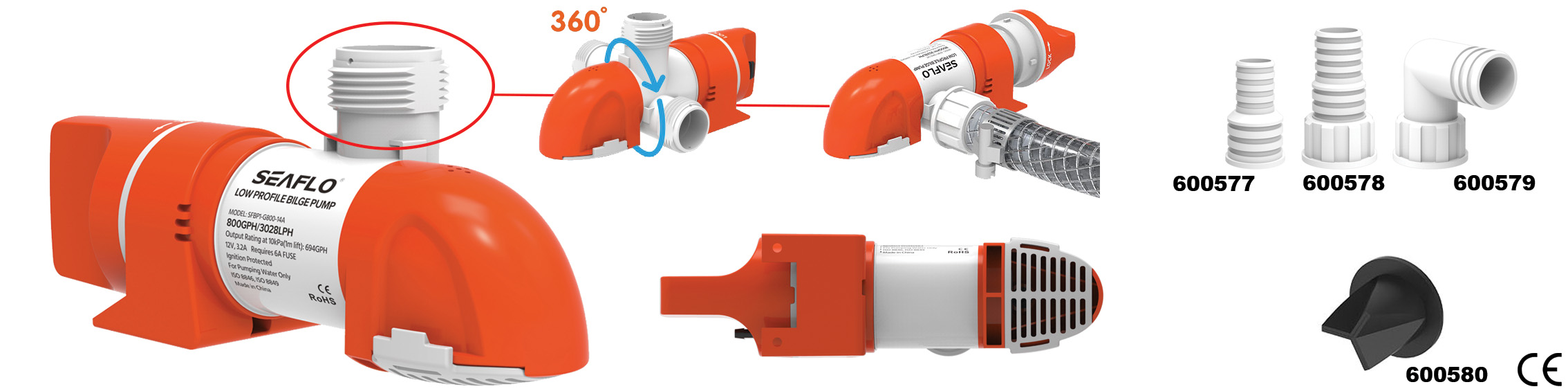

Low profile bilge pump with non-return valve and integrated automatic sensor for a drain starting already at 10 mm. Its reduced dimensions, with the pump's body rotating at 360°, fits in small spaces where other pumps don't fit.
It can be mounted both horizontally and vertically with straight or angled fittings supplied.
CE – RoHS Certified in compliance with ISO 8846/8849 directive.
PUMP
| | Model | Voltage Volts | Max flow rate lt/min | Consumption Amp | Fuse max Amp | Dimensions mm | Ø hose fitting mm | Head m |
|---|---|---|---|---|---|---|---|---|
| 800 | 12 | 50 | 3,2 | x | 183 x 25 x 84 | from ¾" to 1" 1/8 - from 19 to 29 from 1" to 1" 1/8 - from 25 to 29 1" 1/8 - 29 | 3,2 | |
| 800 | 24 | 50 | 2 | x | 183 x 25 x 84 | from ¾" to 1" 1/8 - from 19 to 29 from 1" to 1" 1/8 - from 25 to 29 1" 1/8 - 29 | 3,2 | |
| 1000 | 12 | 70 | 4,2 | 8 | 183 x 25 x 84 | from ¾" to 1" 1/8 - from 19 to 29 from 1" to 1" 1/8 - from 25 to 29 1" 1/8 - 29 | 4 | |
| 1000 | 24 | 70 | 3 | 6 | 183 x 25 x 84 | from ¾" to 1" 1/8 - from 19 to 29 from 1" to 1" 1/8 - from 25 to 29 1" 1/8 - 29 | 4 |
SPARE PARTS
Spare connector for pumps from code 600595 to code 600596/24.
NON-RETURN VALVE
