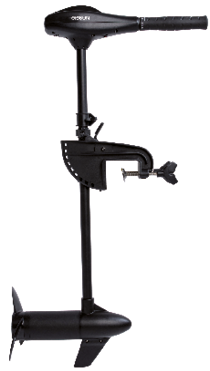

GIBSUN ELECTRIC TROLLING MOTORS FOR FRESH WATER
- electric engines
| THE MAIN FEATURES THAT MAKE ELECTRIC GIBSUN TROLLING MOTORS UNIQUE ARE: | |
|---|---|
| | |
| ● 4 LED battery level indicator with beeper when battery charge is running down. | |
| ● Low currency consumption which enable the battery to work longer after one single charge. | |
| | |
| ● US AMP CONNECT technology: technique used in the plane industry, that make connection between wire and switch more reliable than normal weilding. | |
| ● Use of clamps instead of eye-terminals. | |
| | |
| ● Use of all-copper rotors instead of aluminium ones for the longest life-time. | |
| | |
| ● Telescopic handle which guarantees an easier and more comfortable control. | |
| ● Easy to use: 5-speed forward and 3-speed reverse. | |
| ● Low noise. | |
| | |
| ● Flexible and high-stregth seamless shaft. | |
| ● They can be used also in salt water: the coating can endure acid and saltiness. | |
| ● Continuous and long lasting operation: for more than 500 hours during tests. | |
| ● Very strong thanks to Dupont fiberglass and to the mounting bracket’s reinforced nylon, lighter than the old steel or aluminium parts. | |
| | |
| ● Demountable nylon fin. | |
Tested in compliance with European rules CE and RoHS 2002/95/EC.
Certified in accordance with: EN 55014 - 1:2006+A1:2009, EN 55014-2:1997 +A1:2001+A2:2008.
| | Model | Volts | Thrust Kg | Thrust LBS | Power Watt | Power HP | Shaft’s lenght L cm | Weight Kg | N° SPEEDS Forward - Reverse | For boats max weight kg | For boats from - to m |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SMP30 | 12 | 13,61 | 30 | 288 | 0,375 | 54 | 7,2 | 5 - 3 | 480 | up to 4 | |
| SMP40 | 12 | 18,14 | 40 | 408 | 0,544 | 54 | 8,8 | 5 - 3 | 700 | 3,50 - 5,00 | |
| SMP48 | 12 | 21,77 | 48 | 504 | 0,644 | 54 | 8,8 | 5 - 3 | 1000 | 4,50 - 5,30 | |
| SMP58 | 12 | 26,31 | 58 | 612 | 0,818 | 54 | 10 | 5 - 3 | 1200 | 5,00 - 6,00 | |
| SMP86 | 24 | 39,01 | 86 | 960 | 1,480 | 54 | 11 | 5 - 3 | 1500 | 5,50 - 7,00 |
Availability:
- Available
- Not available
- Stock not managed
Propellers and spare parts available.
N.B.:* These engines are designed for short distances and low speeds.
To avoid overheating a non-intensive use is recommended, strictly complying with the user's manual.
