ELECTRIC PUMP FOR OIL TRANSFER
- bilge pumps
- suction pumps
- electropumps

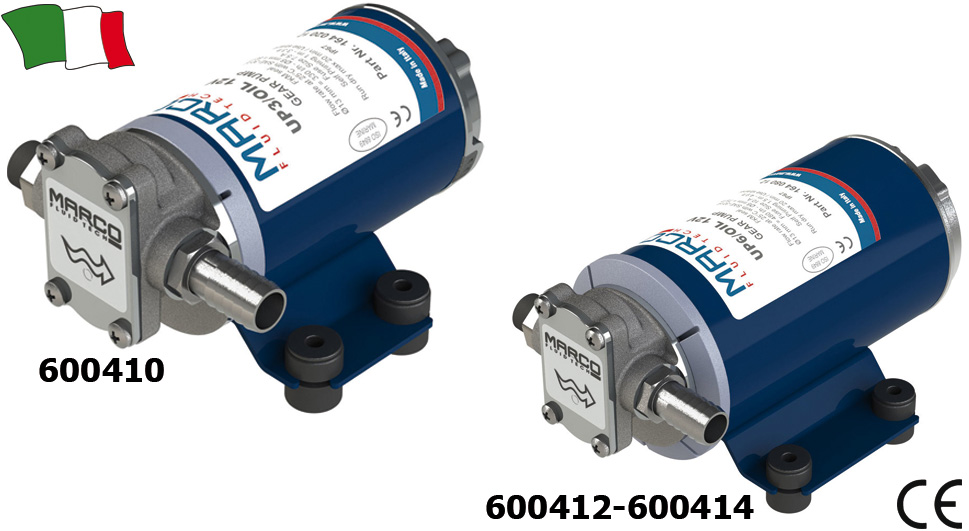

Electric pump with helicoidal bronze gears and integrated flange for model UP6, nickel-plated brass body, STAINLESS STEEL shaft. Particularly suitable for transferring lubricating oils or viscous liquids and for emptying marine engine crankcases using the Rilsan hose kit (our optional code 600416). Suction is through the dipstick hole.
Warning the pump is NOT suitable for transferring gasoline.
ELECTRIC PUMP
| | Model | Pressure bar - psi | Voltage | Priming m | Fuse Amp | Consumption Amp | Oil flow rate SAE 20 at 20°C Ø hose 14 mm - lt/h | Oil flow rate SAE 20 at 20°C Ø hose 8 mm - lt/h | Oil flow rate SAE 20 at 20°C Ø hose 14 mm - lt/h | Dimensions mm | Ø hose fitting mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| UP3 / OIL | 2 - 29 | 12 | 1 | 7,5 | 5 | 18 | 60 | 330 | 149 x 99 x 86 | 14,5 | |
| UP9 / OIL | 5 - 72,5 | 12 | 1,5 | 10 | 7 | 20 | 72 | 480 | 174 x 117 x 95 | 14,5 | |
| UP9 / OIL | 5 - 72,5 | 24 | 1,5 | 7,5 | 4 | 25 | 72 | 480 | 174 x 117 x 95 | 14,5 |
HOSES KIT FOR OIL CHANGE
| Technical features | |
|---|---|
| Tube external diameter | 8 mm |
| Tube internal diameter | 6 mm |
