ECS CHARGE SEPARATOR

  • charge separators
  • accessories for batteries
627702

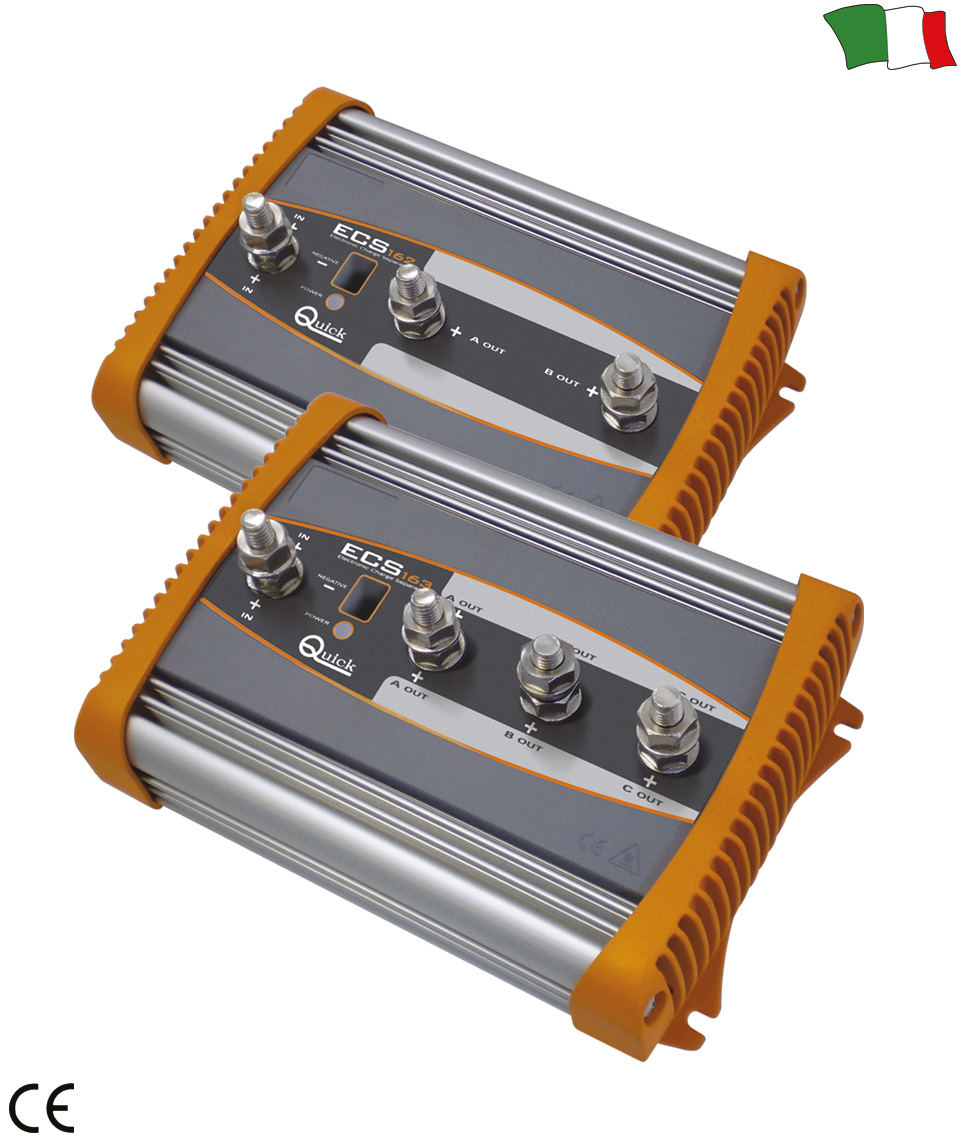

The charge separator ECS Quick allows to increase the number of possible battery connections, safeguarding the charge of each one and offering an energy saving of 6 times more than the traditional diode system. This model has been designed with MOSFET technology, which allows splitting the charge without causing the dangerous voltage drops.
ADVANTAGES
• Negligible loss of voltage
• Low power dissipation
• Functioning over a wide range of environmental temperatures
• It works both with 12 and 24 V electrical systems
• Installation and wiring facilitated by the compact design of the device
PROTECTIONS
• Reverse polarity
• Natural cooling

Technical features

Input voltage

5÷31 Vdc

Charge current from battery charger

120 A

Charge current from alternator

160 A

Dimensions

195x68x135 mm

Model

No.

outputs

Weight

Kg

627702

ECS 162

2

1,2

627703

ECS 163

3

1,25

Availability:
  • Available
  • Not available
  • Stock not managed
