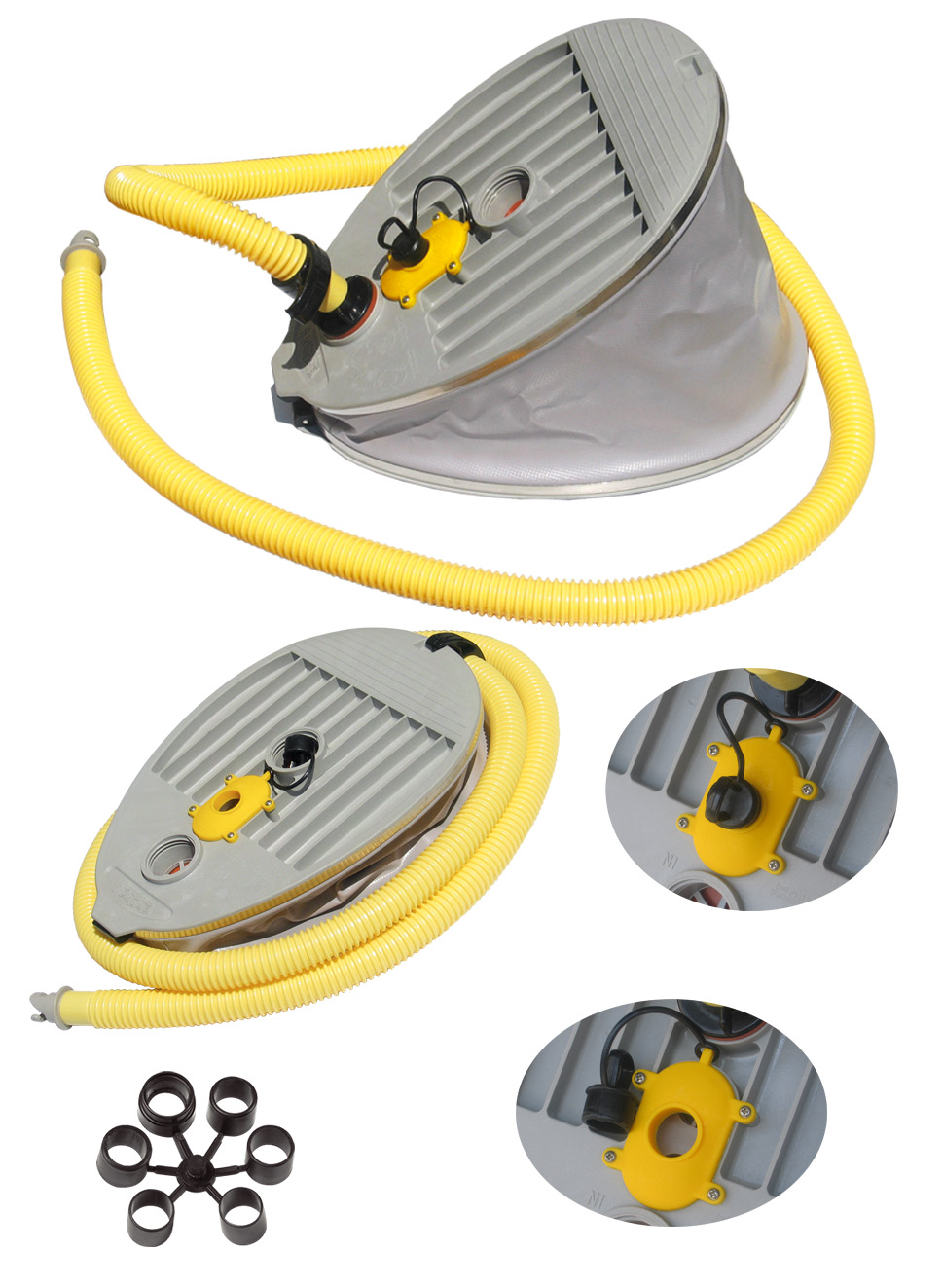

DOUBLE CHAMBER INFLATOR
- inflator pumps
HIGH EFFICIENCY 6,5 l - 0,3 barHIGH PRESSURE 1,5 l - 1,0 bar
Double chamber pump with a device that allows the optimal use of inflating capacity both of tubulars and high-pressure floor.
TO INFLATE THE TUBULARS
start to inflate them with the inserted cap by exploiting the capacity completely.
TO INFLATE THE FLOOR
follow the same procedure as for the tubulars than remove the cap and the pump automatically uses only the smaller chamber, allowing to reach, without effort, the pressure of 1,0 bar(14,7 psi).
Supplied with hose and fittings suitable for the most common valves (like Scoprega series) and for our valves (code 583040/41/45/46).
Suitable also for all our inflatable boats GIBSY A-F-M and V series.
With the adaptor ring supplied (code 583000) it is furthermore suitable for Ceredi valves, to some of Zodiac and ours (code 583100/101/115/116).
| Technical features | |
|---|---|
| Chamber 1 flow rate | 6,5 l |
| Max pressure chamber 1 | 0,3 bar |
| Chamber 2 flow rate | 1,5 l |
| Max pressure chamber 2 | 1,0 bar |
| Dimensions | 320 x 230 x 70 mm |
| Weight | 1,55 kg |
