DEMOUNTABLE SUBMERSIBLE BILGE PUMPNEW
- bilge pumps
- seaflo
- submersible electric pumps
- Electric centrifugal submersible pumps

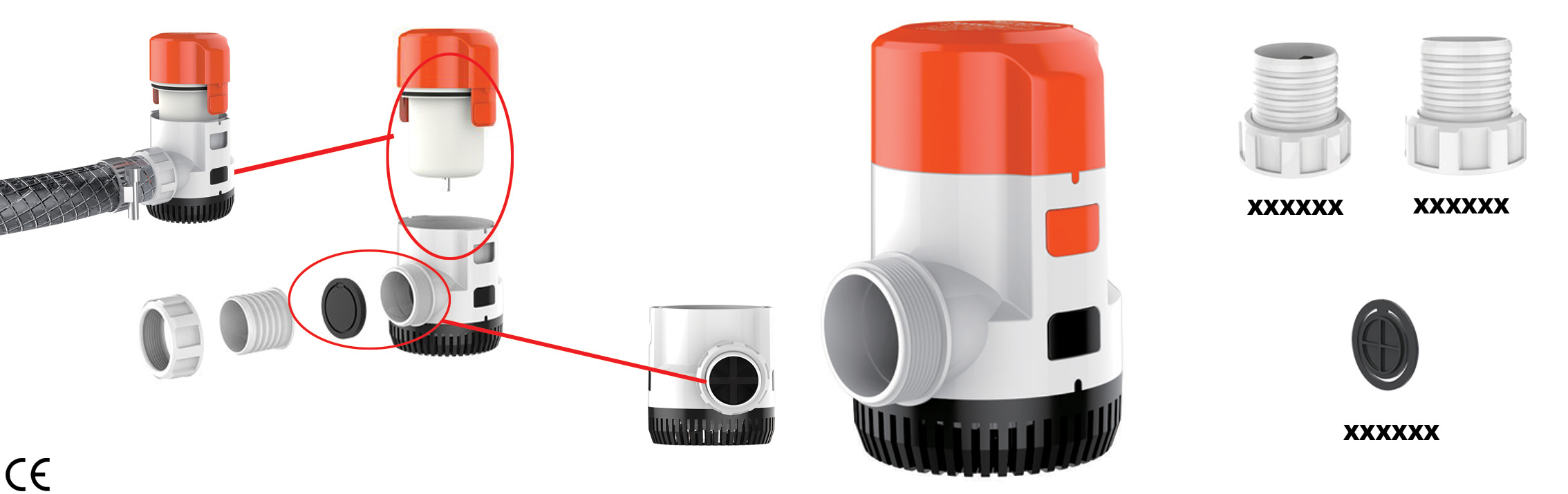

Submersible bilge pump with non-return valve, new design with quick-connect joint which allows to replace a/o remove the motor for cleaning operations without disconnecting the base or plumbing when replacing the pump. Produced with a more robust motor and bigger impeller allow to outperform the pumps actually present in the market.
CE – RoHS Certified in compliance with ISO 8846/8849 directive.
PUMP
| | Model | Voltage Volts | Max flow rate lt/min | Consumption Amp | Fuse max Amp | Height mm | base Ø mm | Ø hose fitting inches - mm | Head m |
|---|---|---|---|---|---|---|---|---|---|
| 3000 | 12 | 189 | 12 | 20 | 187 | 120 | 1" 1/2 - 40 / 2" - 52 | 1 | |
| 3000 | 24 | 189 | 6 | 10 | 187 | 120 | 1" 1/2 - 40 / 2" - 52 | 1 | |
| 3700 | 12 | 233 | 14 | 25 | 187 | 120 | 1" 1/2 - 40 / 2" - 52 | 1 | |
| 3700 | 24 | 233 | 7 | 12 | 187 | 120 | 1" 1/2 - 40 / 2" - 52 | 1 | |
| 4700 | 12 | 296,50 | 16 | 25 | 187 | 120 | 1" 1/2 - 40 / 2" - 52 | 1 | |
| 4700 | 24 | 296,50 | 8 | 14 | 187 | 120 | 1" 1/2 - 40 / 2" - 52 | 1 |
SPARE PARTS
Spare connector for pumps code from 600589 to 600591/24.
NON-RETURN VALVE
Spare non-return valve for pumps from code 600589 to 600591/24.
