CERTIFIED PN16 BALL VALVE FOR MARINE USENEW
- ball valves
- gate valves
Compact PN16 ball valves certified by BUREAU VERITAS for marine use, suitable for both above and below the waterline, indispensable for metal hulls and excellent for fiberglass and wooden hulls.
Suitable for seawater, freshwater, wastewater, and blackwater systems.
Excellent resistance to weathering and chemical products, no galvanic or electrolytic corrosion, completely detachable, MAINTENANCE-FREE.
These technopolymer valves are lighter than traditional metal models, constructed with a body in PPG (polypropylene reinforced with special fibers) and internal seals in EPDM. Female threads ISO 228-1.
BSP (GAS) threading.

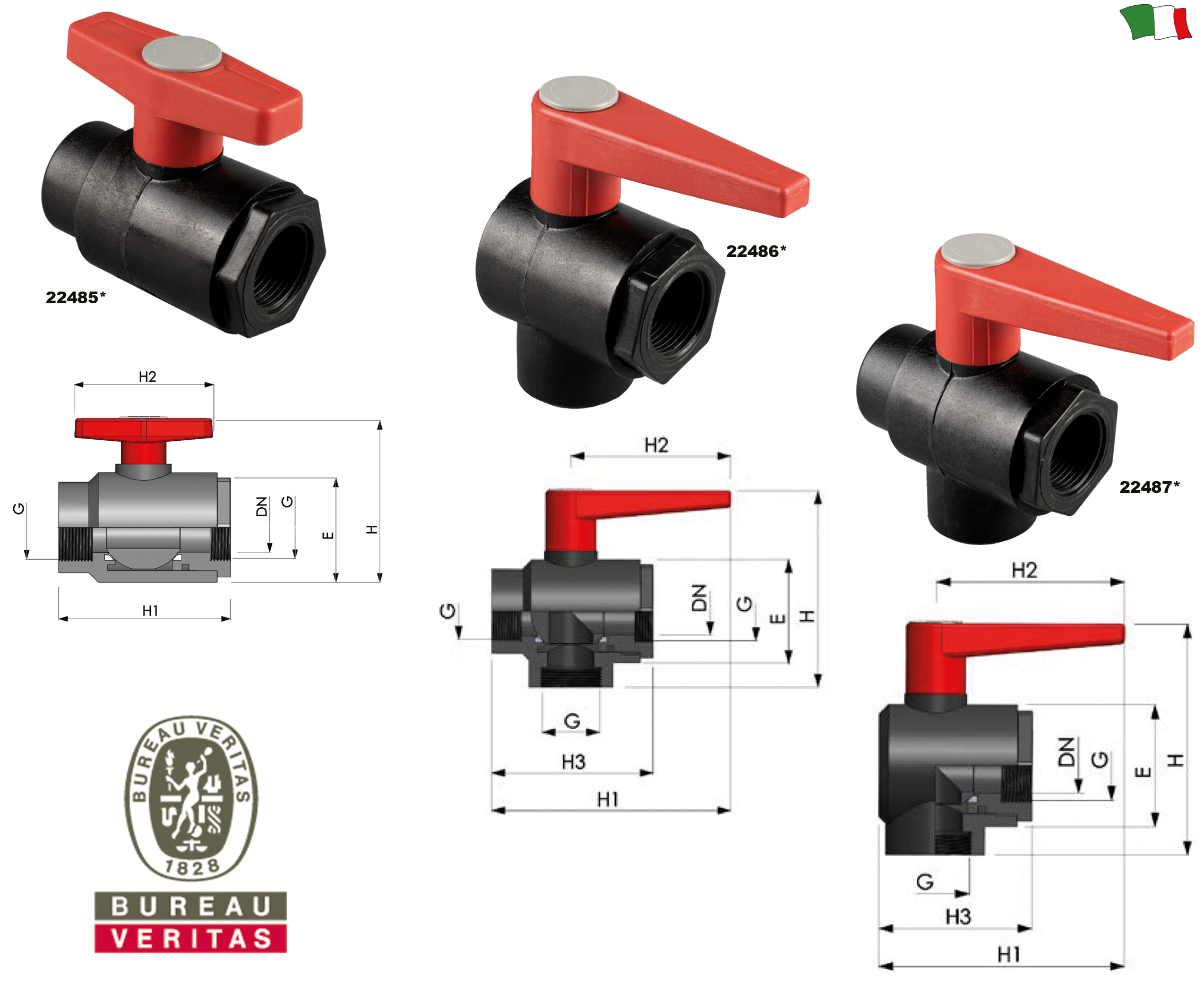

| | Model | Interna thread G inches | DN mm | H mm | H1 mm | H2 mm | H3 mm | E mm |
|---|---|---|---|---|---|---|---|---|
| straight | 1/2" | 15 | 75 | 72 | 73 | - | 43 | |
| straight | 3/4" | 20 | 80 | 81 | 73 | - | 48 | |
| straight | 1" | 25 | 97 | 95 | 98 | - | 56 | |
| straight | 1" 1/4 | 32 | 103 | 100 | 98 | - | 65 | |
| straight | 1" 1/2 | 40 | 130 | 121 | 121 | - | 78 | |
| straight | 2" | 50 | 145 | 133 | 121 | - | 98 | |
| at 90° | 1/2" | 15 | 87 | 90 | 68 | 58 | 43 | |
| at 90° | 3/4" | 20 | 96 | 92 | 68 | 66 | 48 | |
| at 90° | 1" | 25 | 119 | 122 | 92 | 75 | 56 | |
| at 90° | 1" 1/4 | 32 | 125 | 125 | 92 | 83 | 65 | |
| at 90° | 1" 1/2 | 40 | 150 | 190 | 150 | 96 | 78 | |
| at 90° | 2" | 50 | 164 | 200 | 150 | 110 | 98 | |
| 3-way | 1/2" | 15 | 87 | 90 | 68 | 58 | 43 | |
| 3-way | 3/4" | 20 | 96 | 92 | 68 | 66 | 48 | |
| 3-way | 1" | 25 | 119 | 122 | 92 | 75 | 56 | |
| 3-way | 1" 1/4 | 32 | 125 | 125 | 92 | 83 | 65 | |
| 3-way | 1" 1/2 | 40 | 150 | 190 | 150 | 96 | 78 | |
| 3-way | 2" | 50 | 164 | 200 | 150 | 110 | 98 |
