90° CURVED NYLON HOSE HOLDER
- hose fitting for water tanks

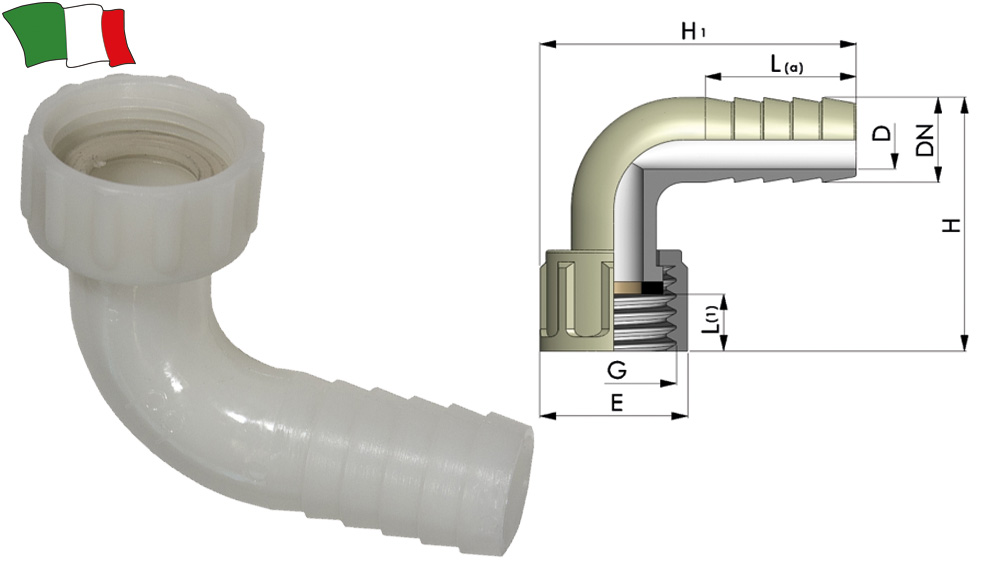

90° curved hose fitting for DN hose with G threaded moving sleeve female end with EPDM flat gasket.
| | G | DN mm - (inch) | D mm | H mm | H1 mm | L(a) mm | E mm | L(1) mm |
|---|---|---|---|---|---|---|---|---|
| 1/2" | 12 - (15/32") | 7 | 50 | 59 | 30 | 27,5 | 10,5 | |
| 3/4" | 12 - (15/32") | 7 | 50 | 61 | 30 | 33 | 11,5 | |
| 3/4" | 16 - (5/8") | 11 | 48 | 61 | 30 | 33 | 7 | |
| 3/4" | 20 - (25/32") | 15,5 | 56 | 73 | 33 | 33 | 8 | |
| 1" | 22 - (7/8") | 17 | 60 | 83 | 30 | 40,5 | 10 | |
| 1" | 25 - (1") | 19,5 | 61 | 82 | 30 | 40,5 | 10 | |
| 1"1/4 | 25 - (1") | 19,5 | 65 | 87 | 30 | 51 | 12 | |
| 1"1/4 | 30 (1"3/16) | 24,5 | 72 | 94 | 28 | 51 | 12 |
